DRV 806-O

Pressure reducers of the series are back-pressure controlled, spring-loaded pressure reducers without auxiliary energy and have an inlet pressure compensation. The pressure reducers are specially designed for use with oxygen, but can also be used for air and neutral gases.


Nominal size DN 15 up to DN 25
Inlet pressure up to 40 bar
Outlet pressure from 0,63 to 10 bar
Temperature range up to 100°C

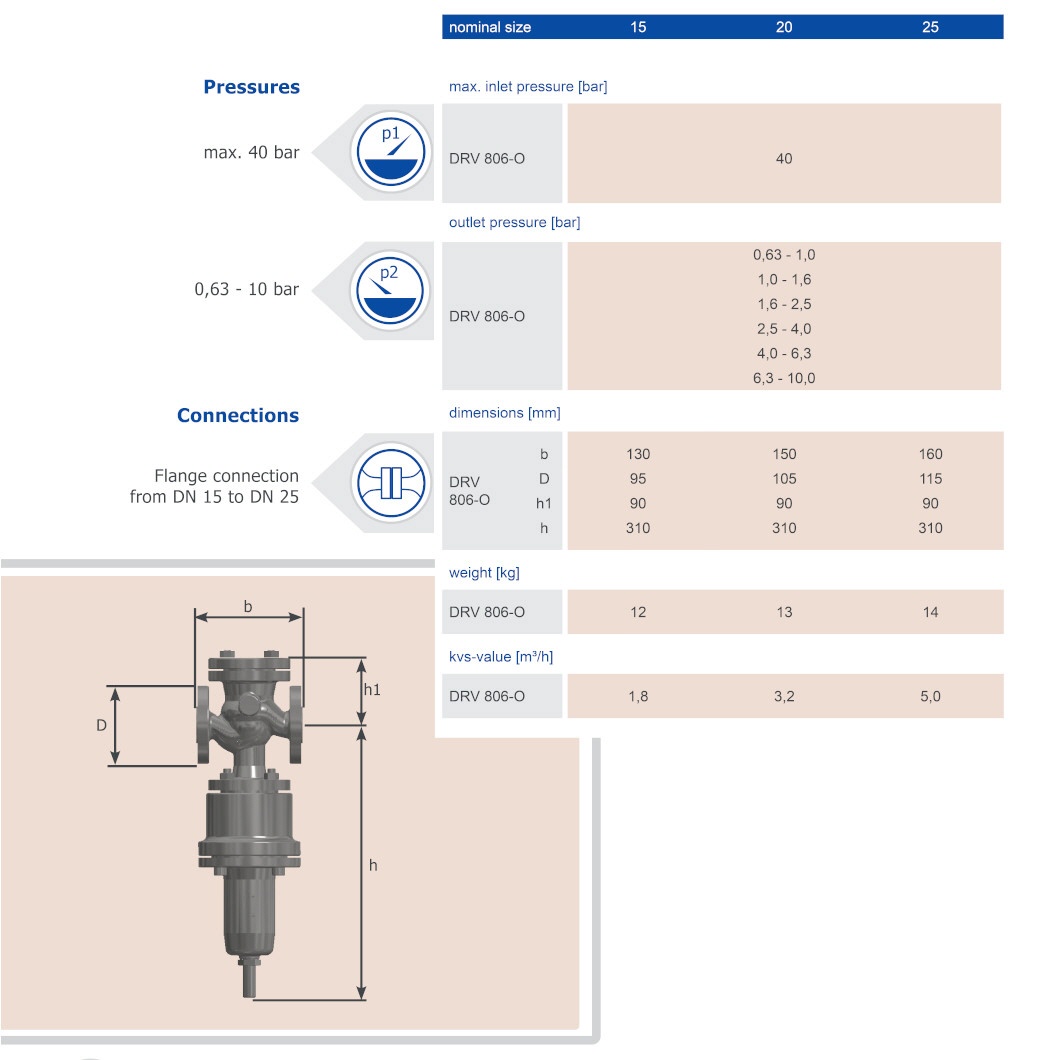

Technical data
