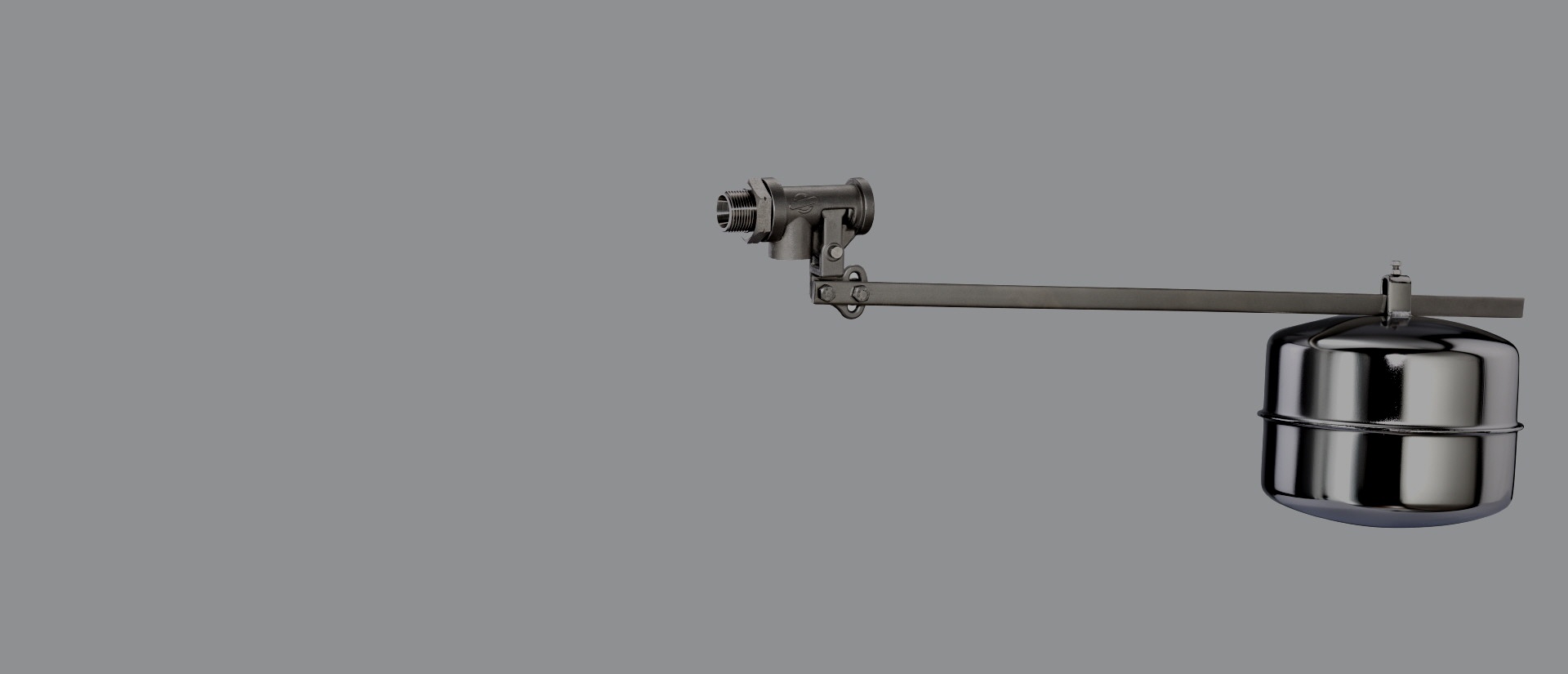

KSV 80

Float valves of this series are ideal for filling medium to large storage tanks or for level control. A desired liquid level can be precisely adjusted by moving the float. The valves have a high flow rate and are particularly suitable for use with aggressive waters or other aggressive liquids.

Nominal size DN 10 up to DN 65
Inlet pressure up to 12 bar
Kvs-value 2,9 - 24 m³/h
Temperature range up to 190°C

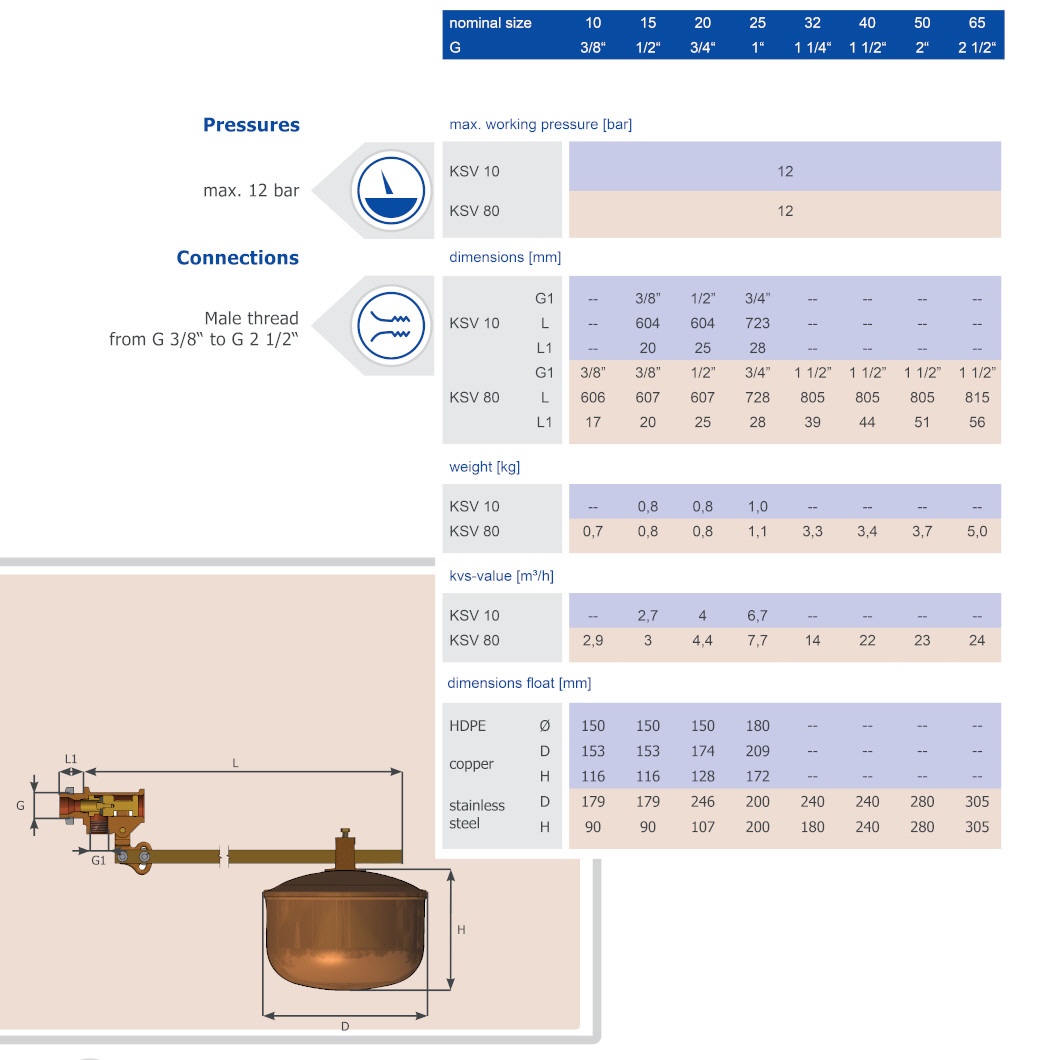

Technical data
