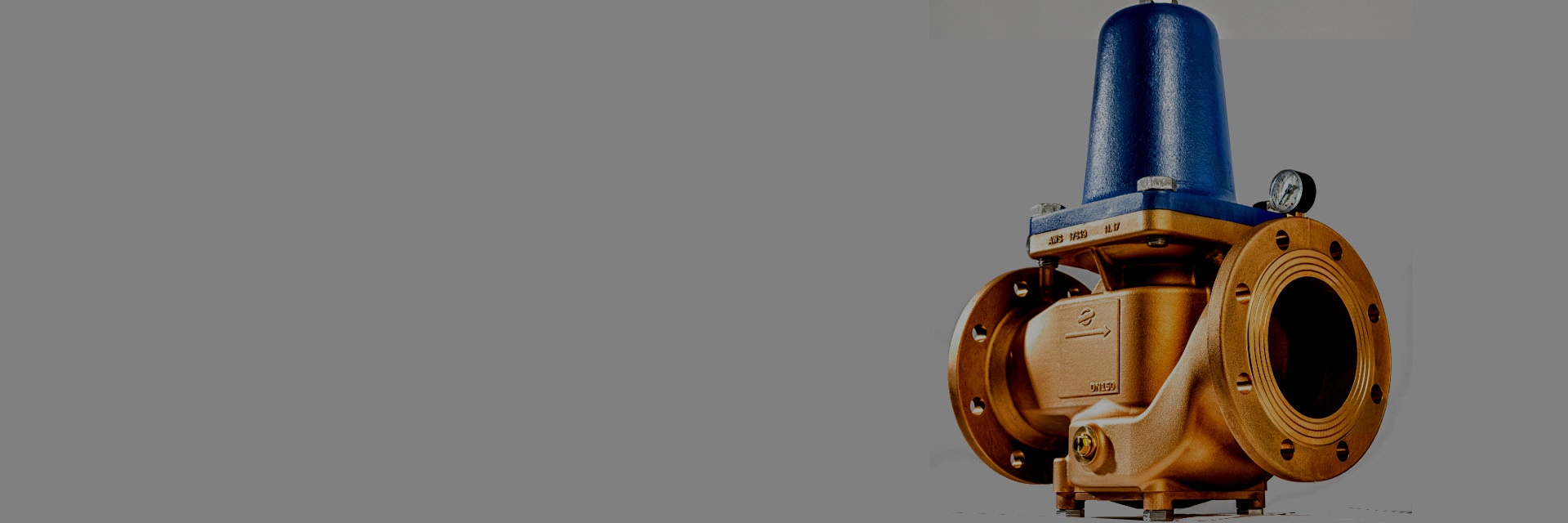

DRV 624

Pressure reducing valves of the series are piston-controlled, spring-loaded pressure reducing valves and have an inlet pressure compensation. All sizes are available with flanges according to DIN, ANSI or JIS.

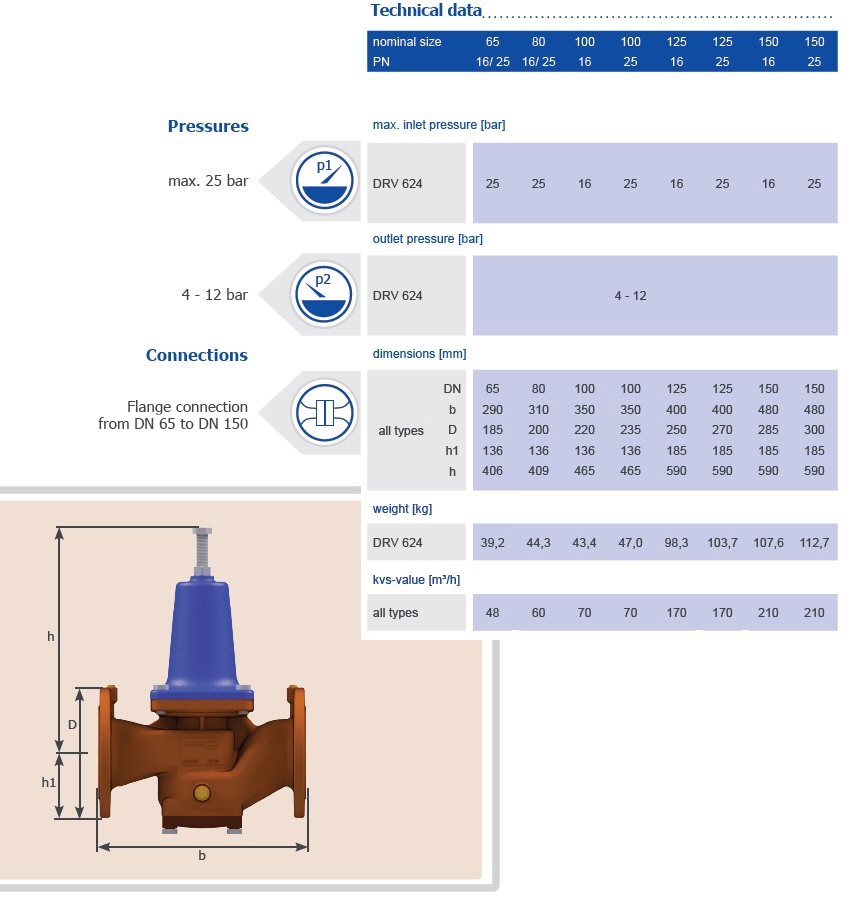

Nominal size DN 65 up to DN 150
Inlet pressure up to 25 bar
Outlet pressure from 4 up to 12 bar
Temperature range -15°C to 100°C
