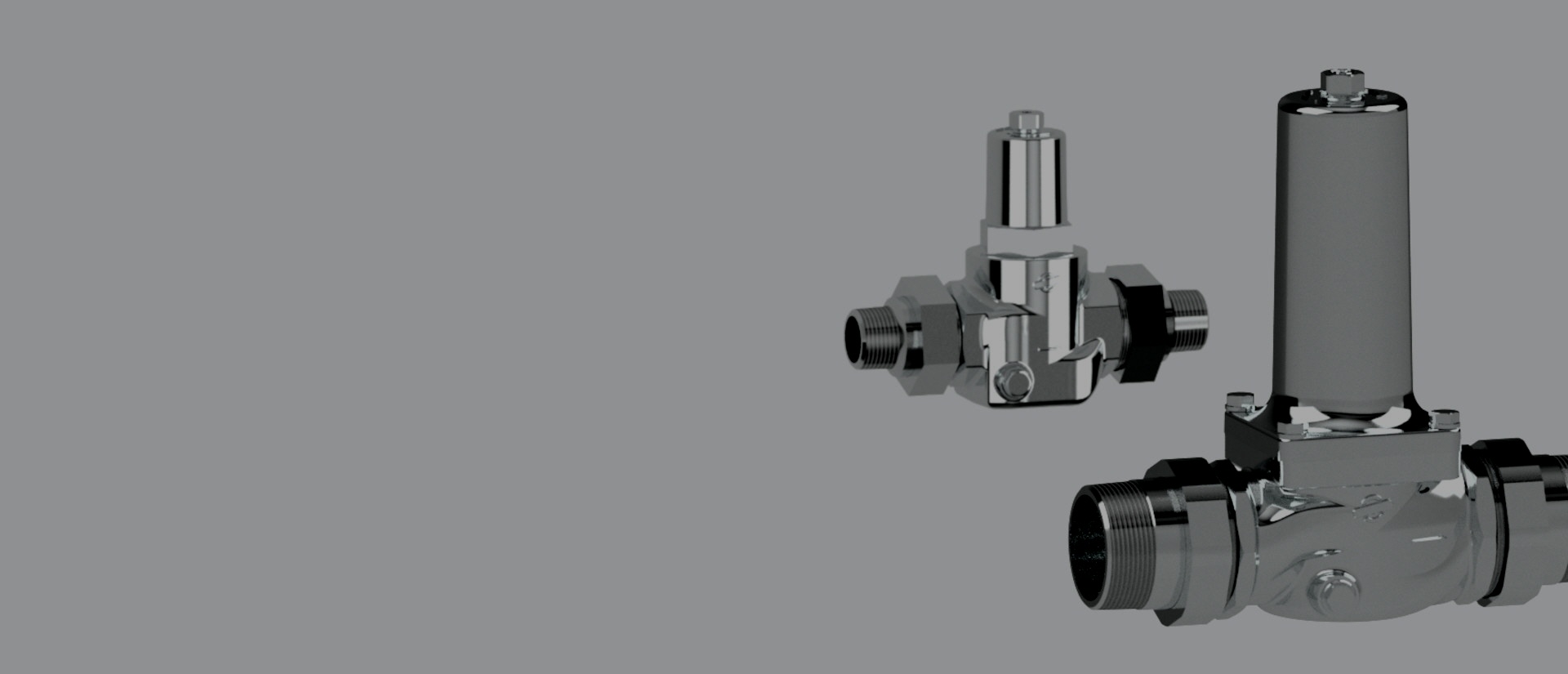

DRV 702-R / 708-R
Pressure reducing valves of the series are diaphragm-controlled, spring-loaded pressure reducing valves and have inlet pressure compensation. The cartridge design allows easy replacement of the internal parts.

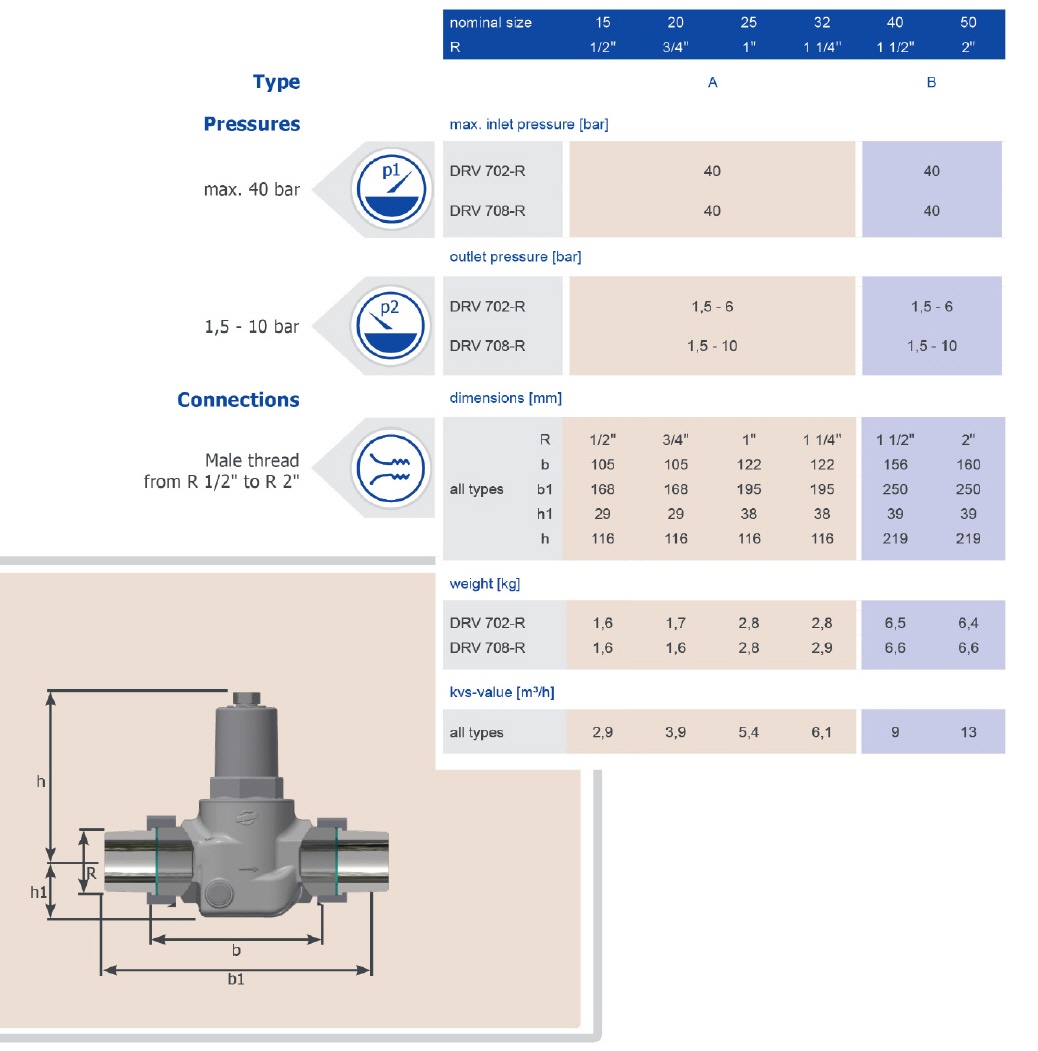

Nominal size DN 15 up to DN 50
Inlet pressure up to 40 bar
Outlet pressure from 1,5 up to 10 bar
Temperature range -30°C to 190°C
