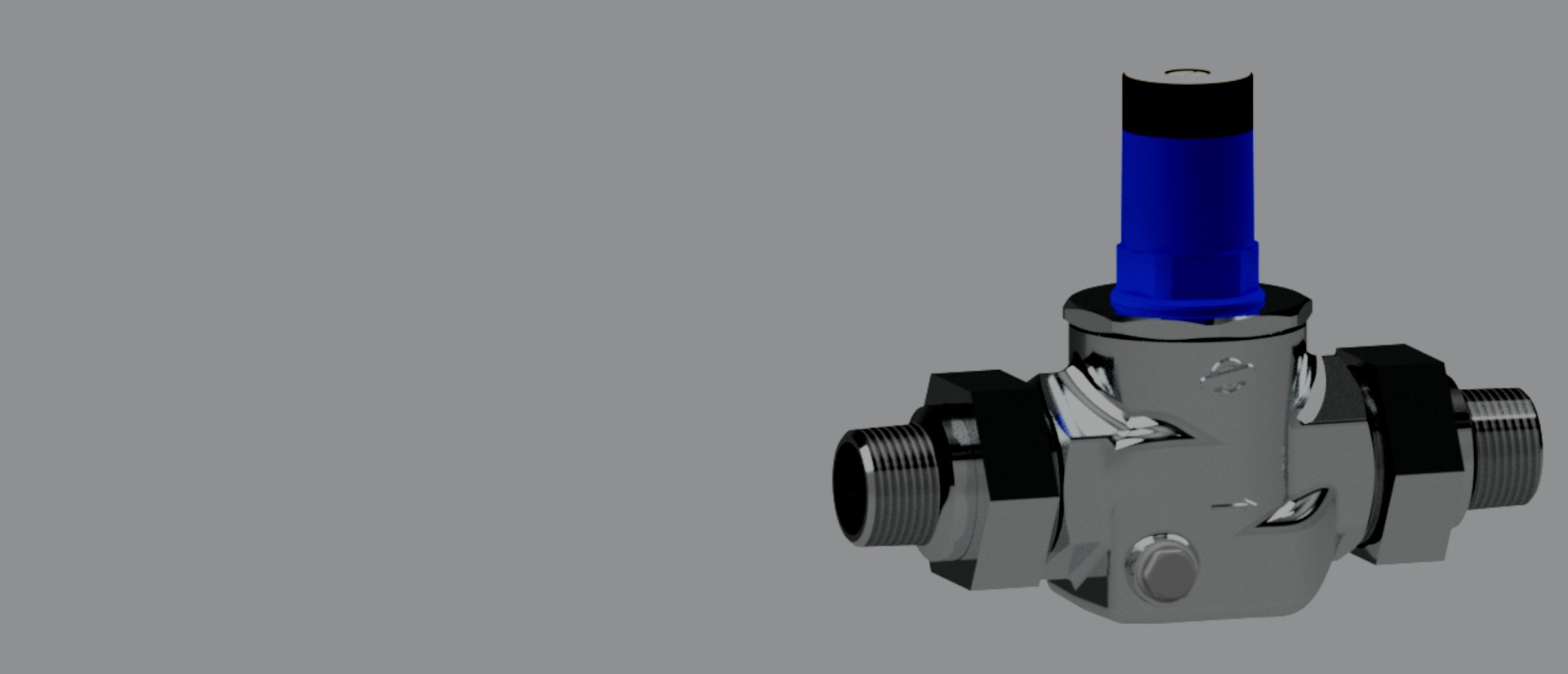

DRV 703-R
Pressure reducing valves of the series are diaphragm-controlled, spring-loaded pressure reducing valves and have inlet pressure compensation. The cartridge design allows easy replacement of the internal parts.

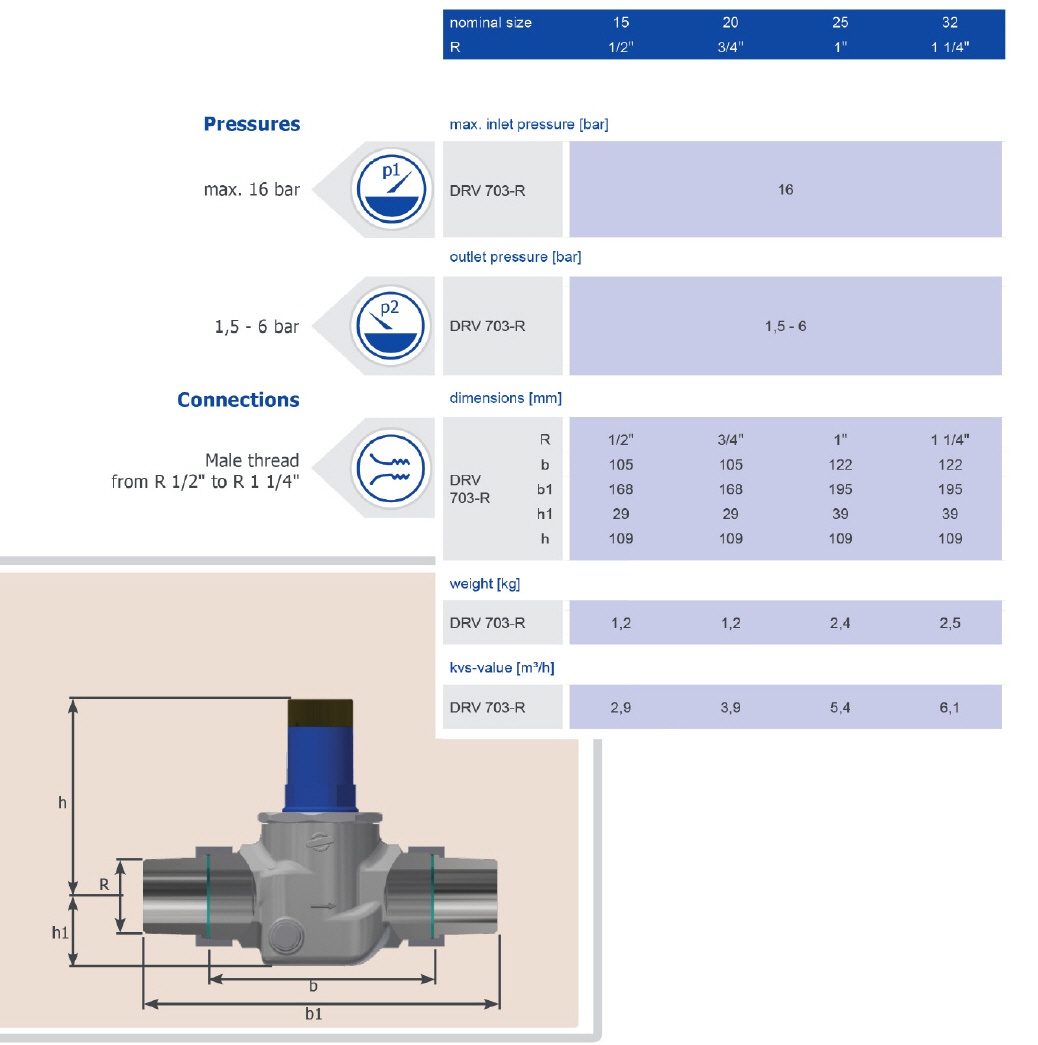

Nominal size DN 15 up to DN 32
Inlet pressure up to 16 bar
Outlet pressure from 1,5 up to 6 bar
Temperature range -30°C to 75°C
